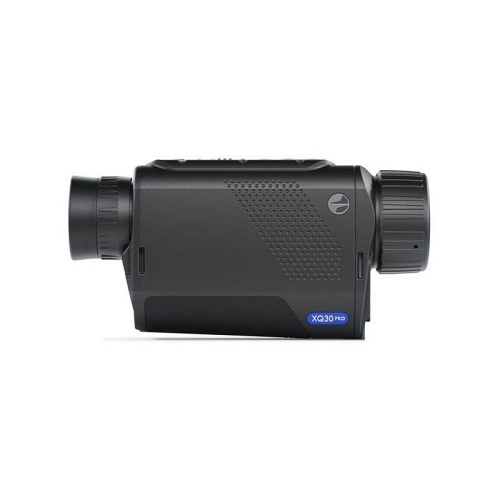

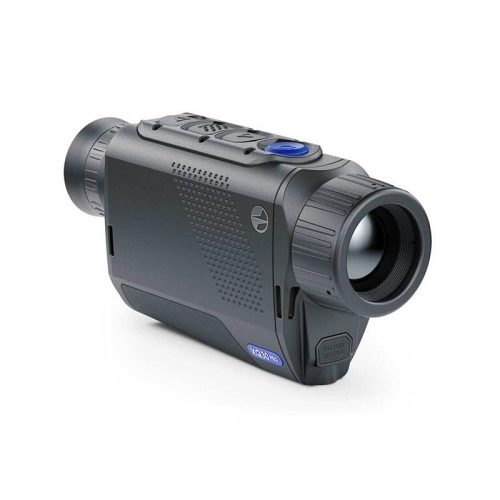

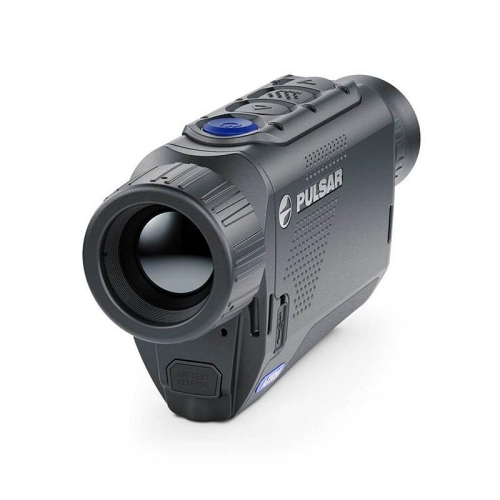

MONOCULAR THERMAL IMAGING DEVICE PULSAR AXION XQ30 PRO

The Axion XQ30 Pro is designed for continuous, often demanding use. Its magnesium alloy housing is both lightweight and sturdy.
The housing reliably protects the thermal imager’s internal components from impacts, drops, moisture, heat, or cold.
At the same time, a metal housing effectively dissipates heat from the electronics, minimizes image noise, and increases
the device’s operational consistency during long-term observation.

• Image sensor: 384x288 pixels @ 17 µm (NETD <25 mK)
• Lens diameter: F30 / 1.2
• Zoom: 2–8 (4x zoom)
• Field of view (HxV): 13.3x10 / 23.3–17.5 degrees / m at 1000 m
• Detection range: 850 m
• Sensor type: Uncooled
• Resolution: 384 x 288 px
• Pixel size: 17 µm
• NETD: <25 mK
• Refresh rate: 50 Hz
• Display type: AMOLED
• Display resolution: 640 x 400 px
• Photo resolution: 528 x 400 px
• Video resolution: 528 x 400 px
• Photo format: .jpg
• Video format: .mp4
• Memory capacity: 16 Gb
• Wireless protocol: Wi-Fi
• Wi-Fi standard: IEEE 802.11 b/g/n/ac (WPA)
• Wi-Fi frequency: Wi-Fi - 2.4 / 5 GHz
• Waterproof: Yes - IPX7
• Operating temperature: -25° C to +40 ° C
• Tripod mount: Yes - 1/4"
• App control: Yes - Stream Vision 2
• Output voltage: 3.0 - 4.2
• Battery type: APS3 removable (3.2 Ah)
• Battery capacity: 3200 mAh
• Battery life: 8 h
• Power supply: 5V (USB)
• Body material: Aluminum alloy
• Dimensions: 144 x 41 x 69 mm
• Weight: 0.3 kg
